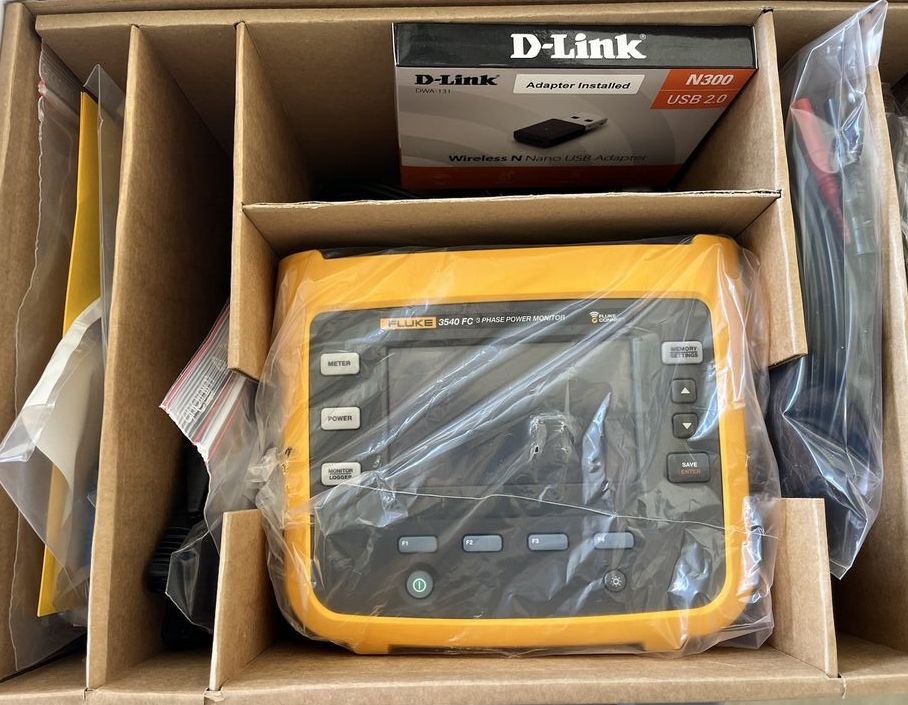

Fluke 3540 FC KIT 3-Phase Power Monitor

Specifications :

Operating temperature : <10 °C to +45 °C (+14 °F to +113 °F)
Storage temperature : <20 °C to +60 °C (-4 °F to +140 °F), with battery: -20 °C to +50 °C (-4 °F to +122 °F)
Operating altitude : 2000 m (6,500 ft) (up to 4,000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
Storage altitude : 12,000 m (39,000 ft)
IP rating : IEC 60529:IP50, in connected condition with protection caps in place
Vibration : MIL-T-28800E, Type 3, Class III, Style B
Voltage range : nominal 100 V to 500 V (85 V min to 550 V max) using safety plug input
Mains power : nominal 100 V to 240 V (85 V min to 265 V max) using IEC 60320 C7 input
Power consumption : Maximum 50 VA (max. 15 VA when powered using IEC 60320 input)
Standby Power : <0.3 W only when powered using IEC 60320 input
Efficiency : ≥ 68.2 % (in accordance with energy efficiency regulations)
Mains frequency : 50/60 Hz ± 15 %
Battery power : Li-ion 3.7 V, 9.25 Wh, customer-replaceable
On-battery runtime : Up to 4 hr (up to 5.5 hr in energy saving mode)
Charging time : <6 hr
