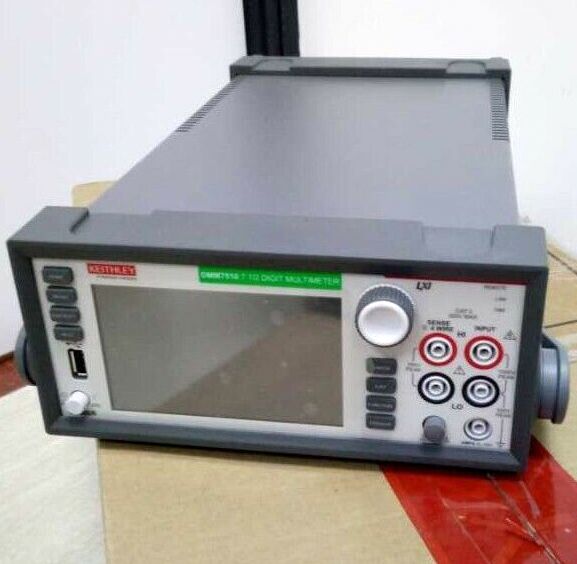

Keithley DMM7510 7.5 Digit Graphical Sampling Multimeter

Specifications :

Precision multimeter with 3½- to 7½-digit resolution
0.0014% basic DCV accuracy
Exceptional low noise performance and expanded range
100mV, 1R, and 10µA ranges offer the sensitivity needed for measuring low level signals
Capture and display waveforms or transients with 1MS/sec, 18 bit digitizer
Large internal memory buffer; store over 11 million readings in standard mode or 27.5 million in compact mode
Display more with 5-inch high-resolution touchscreen interface, any function with one button click, analyze measured data faster
Extensive software available including: Test, Script Builder, KickStart Startup Software, and LabVIEW and IVI drivers
The high-speed digitizing function allows capture and display of voltage and current waveforms
Advanced triggering options make it possible to capture a signal at precisely the right point
88 x 213 x 410mm (w/o handle, bumpers)/ 106 x 255 x 425mm (w/ handle, bumper) (3.63/4.08Kg weight)
