Elite Pro Tools

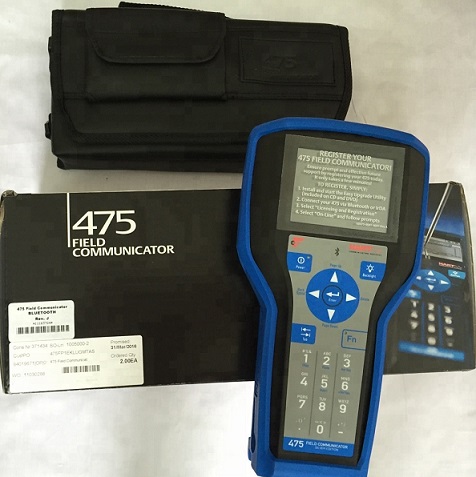

New Emerson 475 Field Communicator Kit

Specifications :

Microprocessor: 80 MHz Hitachi SH3
Memory: Internal Flash 32 MB
System Card: 1 GB secure digital card
RAM: 32 MB
Weight: 1.65 lb. (0.75kg) with battery
Display: 1/4 VGA (240 by 320 pixels) color, 3.5 in. (8.9 cm) transflective display with touchscreen
Keypad 25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key,
Power key, and 4 cursor-control (arrow) keys; membrane design with tactile feedback
Battery Rechargeable Lithium Ion power module
Battery Operating Time 20 hours
Battery Charger Options: Input voltage 100-240 VAC, 50-60 Hz
Battery Charger: Mini DIN 6-pin jack
HART and Fieldbus Three 4mm banana jacks (one common to HART and Foundation Fieldbus)
IrDA Port IrDA (Infrared Data Access) port supporting up to 115 Kbps
±15 degrees recommended maximum angle from center line
Approximately 18 in. (45.7 cm) recommended maximum distance
Bluetooth Up to 32.8 ft. (10 m) communication distance
Uses standard Windows drivers
FCC, IC, and CE approvals
Usage -10°C (14°F) to +50°C (122°F)
Battery 0% to 95% RH (non-condensing) for 0°C (32°F) to +50°C (122°F)
Charge 10°C (50°F) to +40°C (104°F)
Storage With Batteries -20°C (-4°F) to +55°C (131°F)
Storage Without Batteries -20°C (-4°F) to +60°C (140°F)
Enclosure Rating IP51 (from front)
Shock Tested to survive a 1-meter drop test onto concrete
