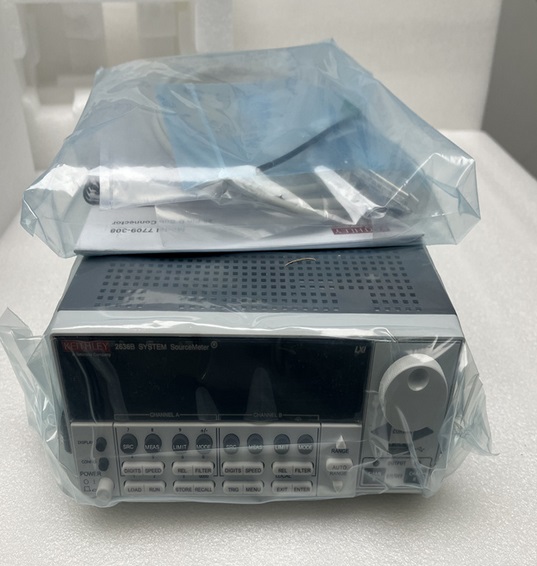

New Keithley 2636B Dual Channel SMU Sourcemeter Unit

Specifications :

Compatible with the Keithley IVy mobile app
Unmatched throughput for automated test with TSP (test script processing) technology
Third generation SMU instrument design ensures faster test times
Simplifies semiconductor component test, verification and analysis
Ethernet, IEEE-488, USB 2.0, LXI-C, GPIB, RS-232 and digital I/O interfaces
SMU per pin parallel testing with TSP-Link technology
100V to 250VAC, 50Hz to 60Hz (auto sensing) power supply, 240VA maximum power consumption
Conforms to European union directive 73/23/EEC, EN 61010-1 and UL 61010-1
Perform Quick I-V characterization with Android devices
89mm (H) x 213mm (W) x 460mm dimension, 0° to 50°C operating temperature
