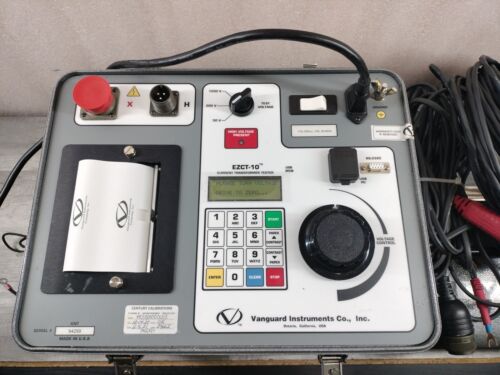

Vanguard EZCT-10 Current Transformer Test Set

Specifications :

Input Power : 100 – 120 Vac or 200 - 240 Vac (factory pre-set), 50/60 Hz
Measurement Method: IEC 60044-1, IEC 61869, ANSI/IEEE C57.13.1, and ANSI/IEEE C57.12.90
Output Test Voltage: 0 – 50 Vac @ 10A max; 0 – 200 Vac @ 10A max; 0 – 1200 Vac @ 1.5A max (5 min on, 10 min off)
Voltage Reading Range : 0 – 1,250 Vac; Accuracy: ±1.0% of reading, ±0.5 volt
Current Reading Range : 0 – 10A; Accuracy: ±1.0% of reading, ±0.02A
Current Ratio Range: 0.8 – 99: ±0.5%, 100 – 999: ±1.0%, 1,000 – 5,000: ±2%
Phase Angle Measurement : 0 – 360 degrees; Accuracy: ±1.0 degree
