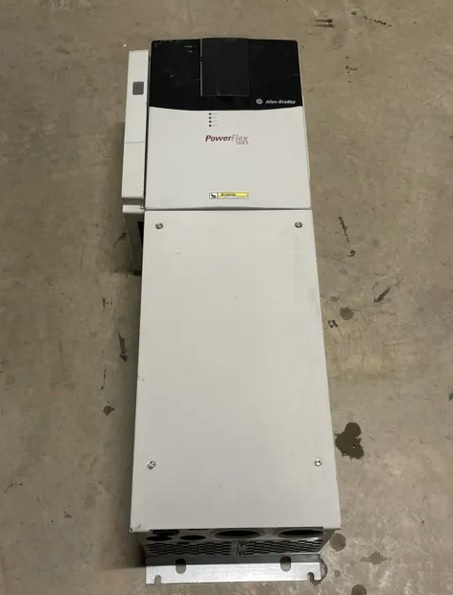

Allen-Bradley PowerFlex 20DD077A0ENNANANE 700s 60HP VS Drive

Specifications :

Number of analogue outputs : 2
Mains voltage : 480 V
Max. output voltage : 932 V
DC bus overvoltage trip : 810V DC @ 480V
DC nominal bus voltage : 648V DC @ 480V
Brake IGBT : Without brake IGBT
Fuse current rating : 150 A @ 650V DC
Input voltage rating : 480V AC, 3-phase, 60 Hz
Displacement power factor : 0.98 across speed range
Output current, continuous : 77 A @ 650V DC
Output current, 1 min : 98 A @ 480V AC, 3-phase, heavy duty
Output current, 3 sec : 130 A @ 650V DC
Circuit breaker current rating, max : 300 A @ 480V AC, 3-phase, normal duty
Motor circuit protector current rating, max : 100 A @ 480V AC, 3-phase, normal duty
Logic control ride-thru : 0.25 seconds, drive not running
Input current rating : 84.5 A @ 650V DC
Rated power rating : 60 Hp @ 650V DC, normal duty
