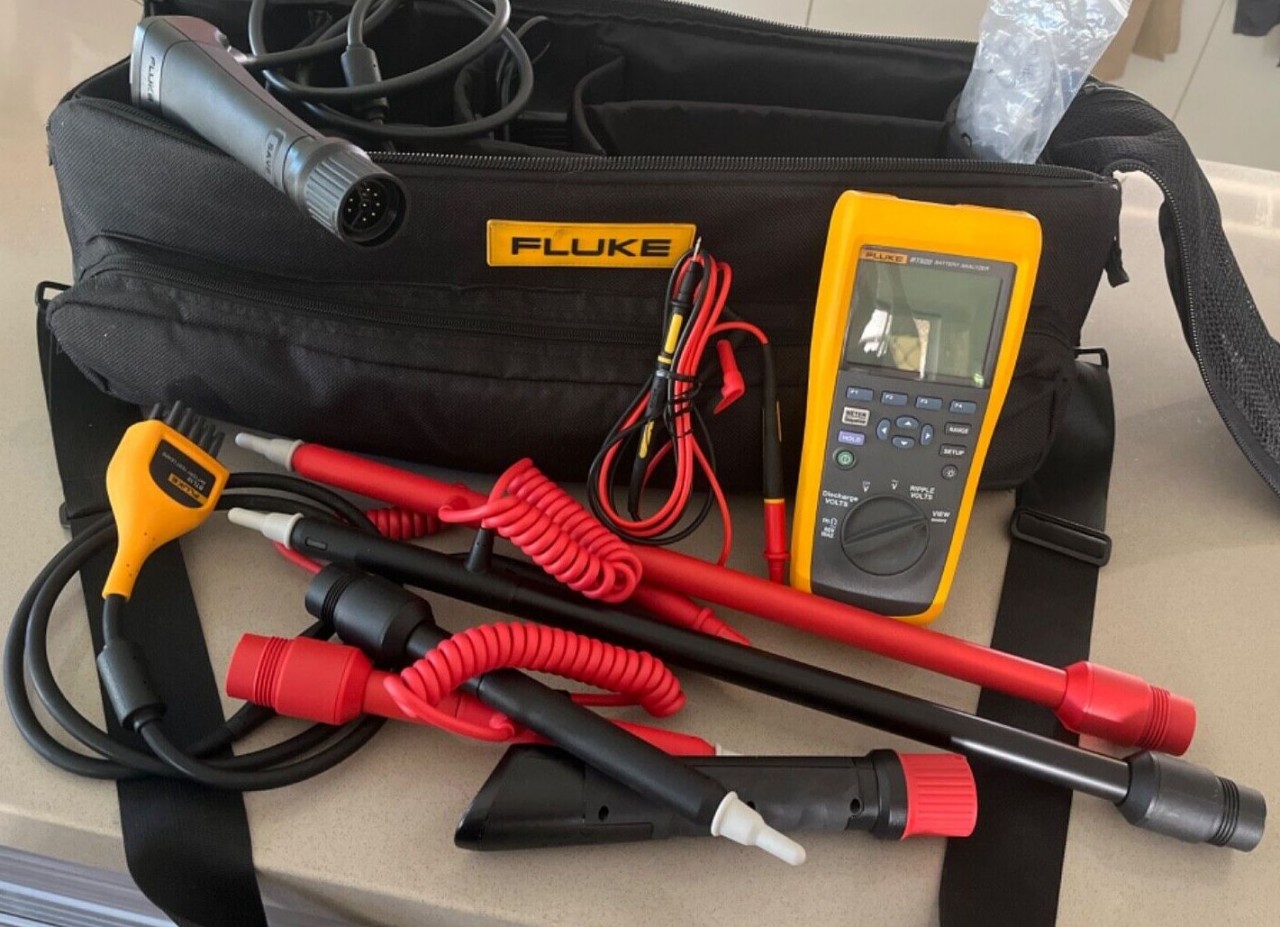

Fluke BT520 Battery Impedance Tester

Specifications :

Operating temperature: 0ºC to 40ºC
Storage temperature: -20ºC to 50ºC
Lithium-ion battery charging temperature: 0ºC to 40ºC
Operating humidity: Non-condensing (10°C)/ <=80% RH (at 10°C to 30°C)/ <=75% RH (at 30°C to 40°C)
Operating altitude: Sea level to 2000 meters
Storage altitude: Sea level to 12,000 meters
IP rating: IP40
Radio: FCC CLass A
Vibration requirements: MIL-PRF-28800F: Class 2
Drop test requirements: 1 meter
Temperature coefficients: Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
Safety compliance: 600V CAT III
EMC: IEC 61326
ROHS: China, Europe
Battery compliance: UN38.3, UL2054, IEC62133 and 2 G per IEC68-2-26, 25G, and 29
