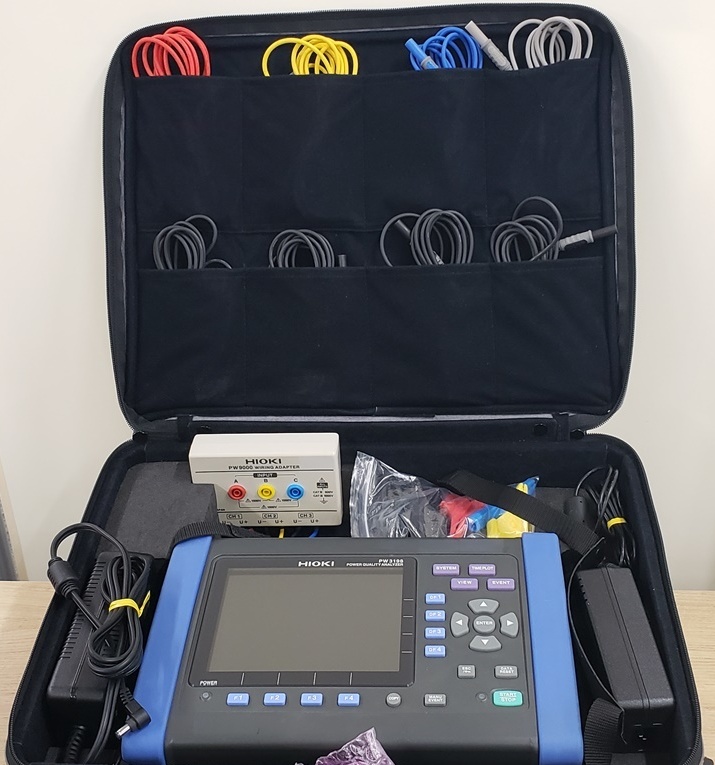

Hioki PW3198 Power Quality Analyzer

Specifications :

Transient over-voltage : 2 MegaHertz samples
Frequency cycle si Calculated as 1 cycle, 40 - 70 Hertz
Voltage (.5) RMS 1 cycle calculation is refreshed every 1/2 cycle.
Current (.5) RMS 1/2 cycle calculations.
Voltage swell, dips, and interruption
Voltage waveform comparisons
Inrush current
Value of instantaneous flicker - IEC61000-4-15 compliance
Frequency is calculated as 12 or 10 cycles from 40 - 70 Hertz
10 second frequency is calculated as whole cycle timing during specified 10 second period from 40 - 70 Hertz
Waveform peak Voltage, waveform peak Current
Active power, Current, Voltage, Apparent power, Reactive energy, Active energy, Reactive power, Voltage unbalance factor, Displacement power factor, Power factor, Current unbalance (zero phase, negative phase) factor
High order harmonic component (current / voltage ) 2 to 80 kiloHertz
Harmonic phase / Harmonic angle (current / voltage), Harmonic power from 0 to 50 th order
Harmonic current-voltage phase angle from 1 to 50 th order
Harmonic distortion total factor (current / voltage)
Inter harmonic (current / voltage) from 0.5 to 49.5 Hertz
(multiplication factor) K Factor
ΔV10 Flicker, IEC Flicker
