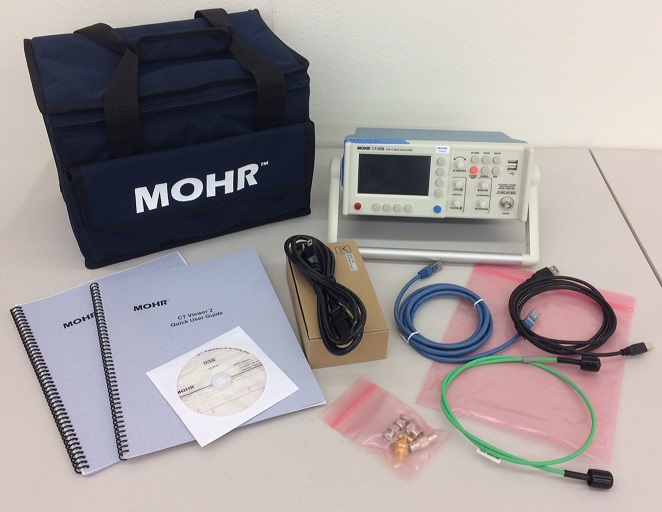

MOHR Series CT100 TDR Cable Tester For Sale

Specifications :

    Risetime (20-80%): 100ps
    Pulse Amplitude (into 50 Ohm load): 300 mV
    Sequential Sampling Rate: 5-250 kHz
    Sampling Resolution: 16 bits
    TDR Frame Rate: 500 fps
    Horizontal Scale: 0.003 - 200 ft/div (0.001 - 50 m/div)
    Horizontal Range: 0 - 30,000 ft (0 - 9 km)
    Vertical Sale: 0.004 - 500 m?/div
    Battery Life: 8 hours
    Battery Recharge: <3
    I/O Options: USB host/client 10/100 Ethernet
    Data Storage: Thousands of Traces
    Network Integration: 10/100 Mb Ethernet
    Display: 4.3" 480x272 backlit color TFT LCD
    TDR Trace Display: Unlimited
    TDR Digital Filtering: smooth, subtract, derivatives, FFT
    Weight: 4.7 lb
