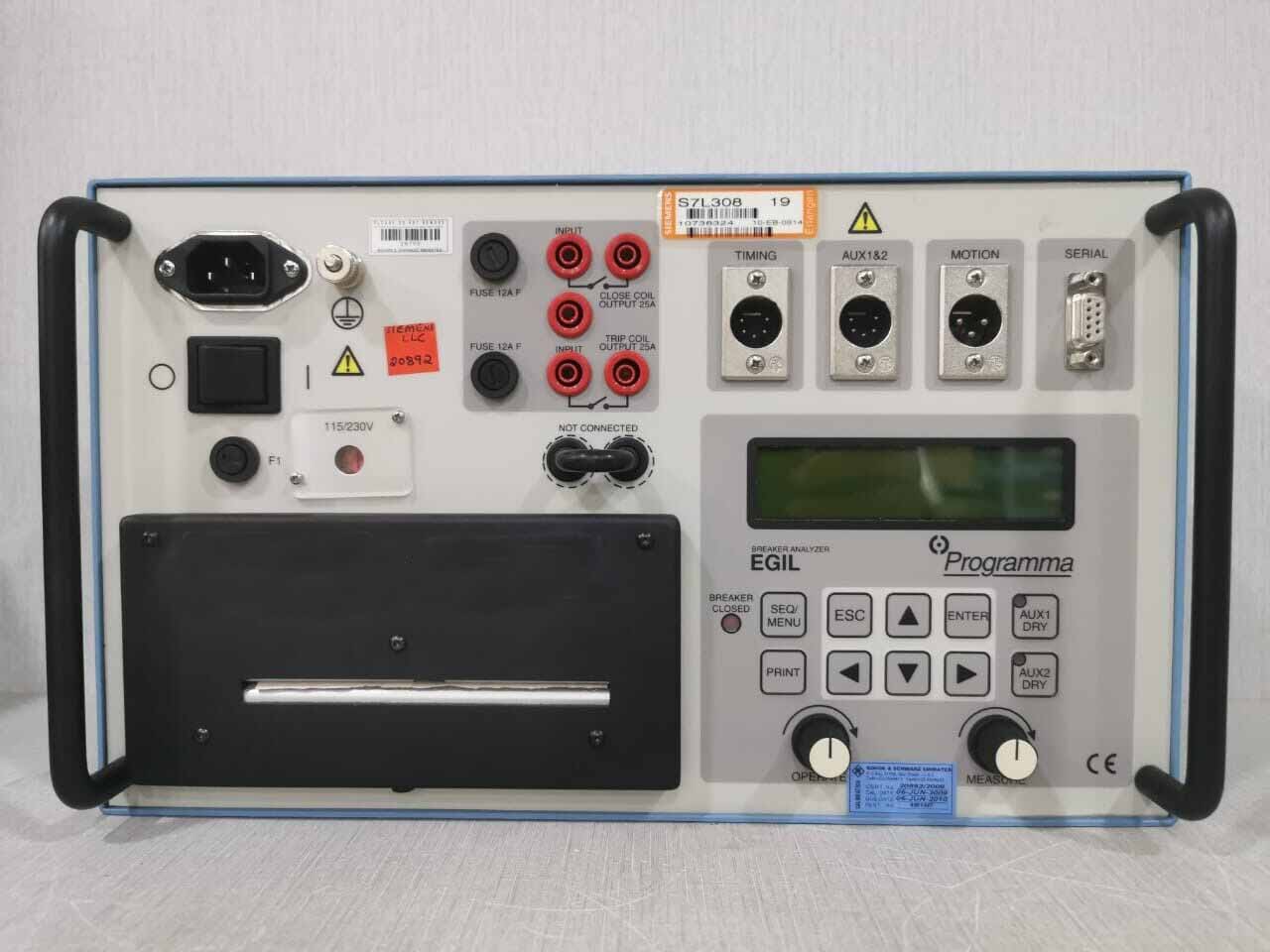

Megger Programma EGIL Circuit Breaker Test Analyzer

Specifications :

Mains voltage 115/230 V AC (switchable), 50/60 Hz.
Display LED.
Mains voltage 115/230 V AC (switchable), 50/60 Hz.
Power consumption 100 VA (max).
Time measurement Measurement time: 1 to 100 s
Resolution: 0.1 to 10 ms.
Number of channels 3 with common ground.
Time base inaccuracy 0.05% of the reading ± resolution.
Status thresholds Closed: < 10 Ω ± 20%
Resistor: 10 Ω ± 20% to 3 kΩ ±20%
Open: > 3 kΩ ± 20%.
Open circuit voltage 24 V ± 20%.
Short circuit current 100 mA ± 20%.
AUX 1 & 2 Number of channels: 2, galvanically isolated.
Contact-sensing (Dry) Status thresholds
Closed < 600 Ω ± 30%.
Open > 600 Ω ± 30%.
Open circuit voltage 20 V ± 20% DC.
Short circuit current 25 mA ± 20%.
