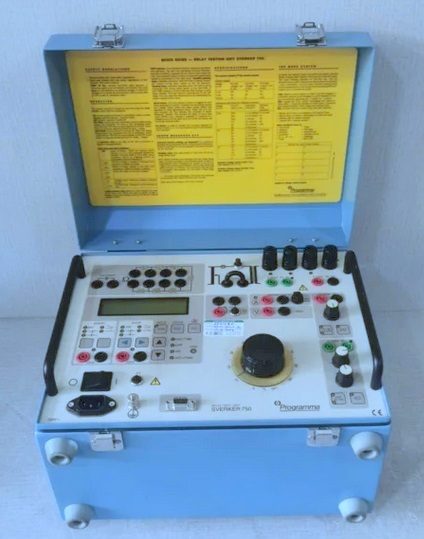

Megger Programma Sverker 750 Relay Test Set Unit

The Sverker 750 incorporates a versatile built-in current source, providing outputs ranging from 0-10A to 0-250V AC or 0-300V DC. Designed to comply with EU and safety standards, it includes a serial port for seamless communication with personal computers using the SVERKER Win software. In addition to its extensive range of single-phase relay testing applications, covering relays such as overcurrent, undercurrent, ground fault, directional overcurrent, overvoltage, undervoltage, and more, the Sverker 750 boasts a variety of extra features. These include excitation curve plotting, transformer ratio tests, burden measurement, impedance measurement, efficiency tests, polarity tests, injection with various modes, filtering for averaged readings, and off delay functionality for delayed generation shutdown after tripping.

Features

    Familiar and user-friendly control panel layout
    Comprehensive measurement section with multiple parameters
    Voltmeter functioning as a secondary ammeter
    Clear and easy-to-read display
    Flexible built-in current source with various outputs
    Compliance with EU and safety standards
    Serial port for PC communication with SVERKER Win software
    Wide range of single-phase relay testing applications
    Excitation curve plotting
    Transformer ratio tests
    Burden measurement for protective relay test equipment
    Impedance measurement
    Efficiency tests
    Polarity (direction) tests
    Injection with maintained, momentary, and maximum time modes
    Filtering for averaged readings
    Off delay functionality for delayed generation shutdown
