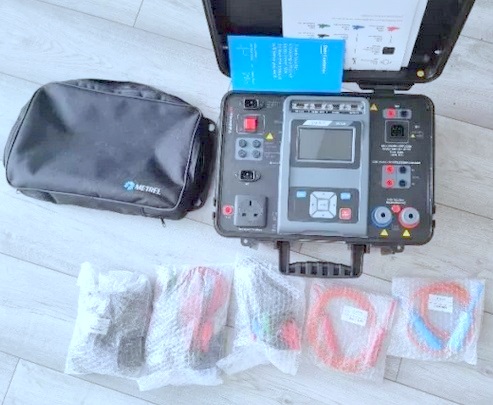

Metrel MI3325 Multi Servicer XD Multifunction Tester

Metrel MI3325 MultiServicerXD Multifunction Tester includes built-in help screens designed to aid the user with performing each test and also features an integrated fuse table for the automatic evaluation of line/ loop impedance results. Accessing the tests, results and functions is easy via the Metrel MI3325 MultiServicerXD Multifunction Tester’s high-resolution, 4.3” TFT, colour touchscreen display and keyboard. Measurements can be saved to the Metrel MI3325 MultiServicerXD Multifunction Tester’s extensive, 8GB SD card; it is possible to expand this memory to 32GB. This memory card is integrated into the Metrel MI3325 MultiServicerXD Multifunction Tester. Data can be downloaded to a PC using one of the Metrel MI3325 MultiServicerXD Multifunction Tester’s four communication ports: RS232, USB, Ethernet and Bluetooth. These communication ports also facilitate remote control.

Features :

    Specifically optimised for industrial applications
    A rugged and reliable multifunction tester
    Features an eclectic selection of testing capabilities designed to accommodate diverse industrial applications
    Suitable for industrial and periodic safety testing
    Safety test machinery in accordance with IEC/ EN 60204 Ed.6
    Safety test low-voltage switchgear and control gear according to IEC/ EN 61439-1 Ed.2
    Safety test portable appliances in compliance with VDE 0701-0702, AS/NZS 3760 and Code of Practice
    Safety test arc welding equipment in accordance with IEC/ EN 60974-4 Ed. 2 (when used with a Metrel A1422 Active Three-Phase Adapter)
    Equipped with a variety of test and measurement capabilities
    2-wire and 4-wire continuity test
    4-wire continuity measurements with selectable test currents, 0.2A, 4A, 10A, 25A
    HV AC (programmable from 100V to 5000V)
    Hi-pot: high voltage AC (5kV @ 250 VA)
    Insulation resistance (Riso and Riso-S) 50V, 100V, 250V, 500V, 1000V (DC)
    Sub-leakage current (Isub, Isub-s) 110V AC and 230V AC
    Z loop: fault loop impedance and prospective fault current (Ipsc, Ulpe, Uc(P))
    Zs RCD: fault loop impedance and prospective fault current in a system with RCD (Ipsc, pe, Uc(P))
    Z line: line impedance and prospective shortcircuit current (Ipsc, Uln)
    Functional test for power P/S/Q, voltage, current, cos fi, frequency, ThdU, ThdI, PF
    Visual inspections
    Custom inspections (visual and functional)
    Touch leakage current
    RCD testing (RCD Uc, RCD t, RCD I): supports types A, AC, B, B+ and F
    Differential leakage current
    Polarity
    Clamp current
    Voltage, frequency and phase rotation
    Varistor test
    Voltage drop
    Discharging time
    Monitor all three voltages in real-time
    Conduct tests on TT, TN, IT and 115V supply systems
    RCD Auto: automated RCD testing procedures
    Z Auto: automated impedance testing procedures
    Pre-defined AUTOSEQUENCES® for a variety of appliances, systems and equipment
    Integrated help screens designed to aid the user with performing each test
    Integrated fuse table for the automatic evaluation of line/ loop impedance
    High-resolution, 4.3” TFT display
    Keyboard
    Integrated 8GB SD card
    Memory can be expanded to 32GB
    Four communication ports: RS232, USB, Ethernet and Bluetooth
    Communication ports facilitate data transfer and remote control
    Metrel ES Manager Software enables data download
    Archive data and create and print reports using the Metrel ES Manager Software
    Create customised test sequences with pre-defined PASS/ FAIL limits using this software
    A durable, versatile and reliable electrical safety tester optimised for industrial applications and environments
