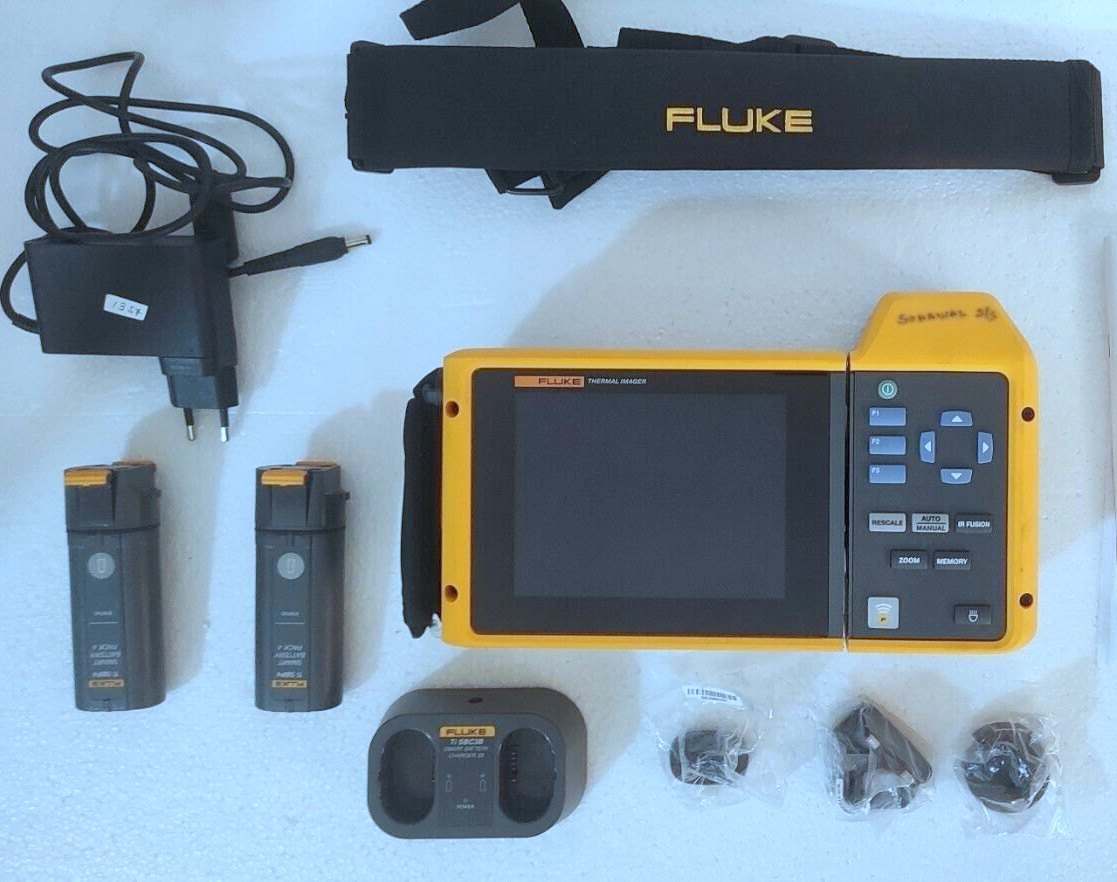

Fluke TiX580 Thermal IR Camera For Sale

Fluke TiX580 High Resolution Thermal Imaging Camera comes in 9Hz and 60Hz frame rates. The device runs on one of the two included lithium batteries, each offering 2-3 hours of usage. The camera’s adjustable neck and hand straps enhance user comfort. It boasts an IP54 rating for water and dust resistance and is drop-tested from 1 meter with the standard lens. A hard carry case provides additional protection. TiX580 also supports R&D analysis through MATLAB® and LabVIEW® toolboxes, allowing integration of camera data, infrared video, and images into software applications. This rugged and durable camera comes with a two-year warranty from Fluke, ensuring its suitability for industrial use in various settings.

Specifications :

IFOV with Standard Lens: 0.93 mRad
Distance-to-Spot Ratio: 1065:1
Temperature Accuracy: ±2 °C or 2%
Temperature Range: -20 °C to +800 °C (-4 °F to +1472 °F)
Thermal Sensitivity (NETD): 0.05 °C at 30 °C (50 mK)
Detector Resolution: 640 x 480 pixels (307,200 pixels)
Enhanced Resolution: Up to 1280 x 960 with SuperResolution
MultiSharp Focus for clear near and far objects
LaserSharp AutoFocus for consistent focus
Built-in laser distance meter
Advanced manual focus options
Display: 5.7 inch landscape LCD touchscreen
Rugged, ergonomic design with rotatable lens
Digital Zoom: 2x, 4x, 8x
Automatic emissivity correction
On-screen reflected background temperature compensation
On-screen transmission correction
AutoBlend™ mode for combined digital and IR imaging
Picture-In-Picture (PIP) options: 100%, 75%, 50%, 25% IR
Built-in 5 MP digital camera
Fluke Connect compatible for remote sharing
User-set color alarms for temperature ranges
Rotatable screen for reduced glare
Hand and neck straps included
Battery: Lithium-ion (2 included), 2-3 hours per battery
8 color palettes: Ironbow, High Contrast, etc.
Voice annotation up to 60 seconds per image
Laser pointer and LED torch
Filter mode for enhanced sensitivity
Continuous level and span adjustments
Image sharpening for clearer IR images
MATLAB® and LabVIEW® compatibility for R&D integration
