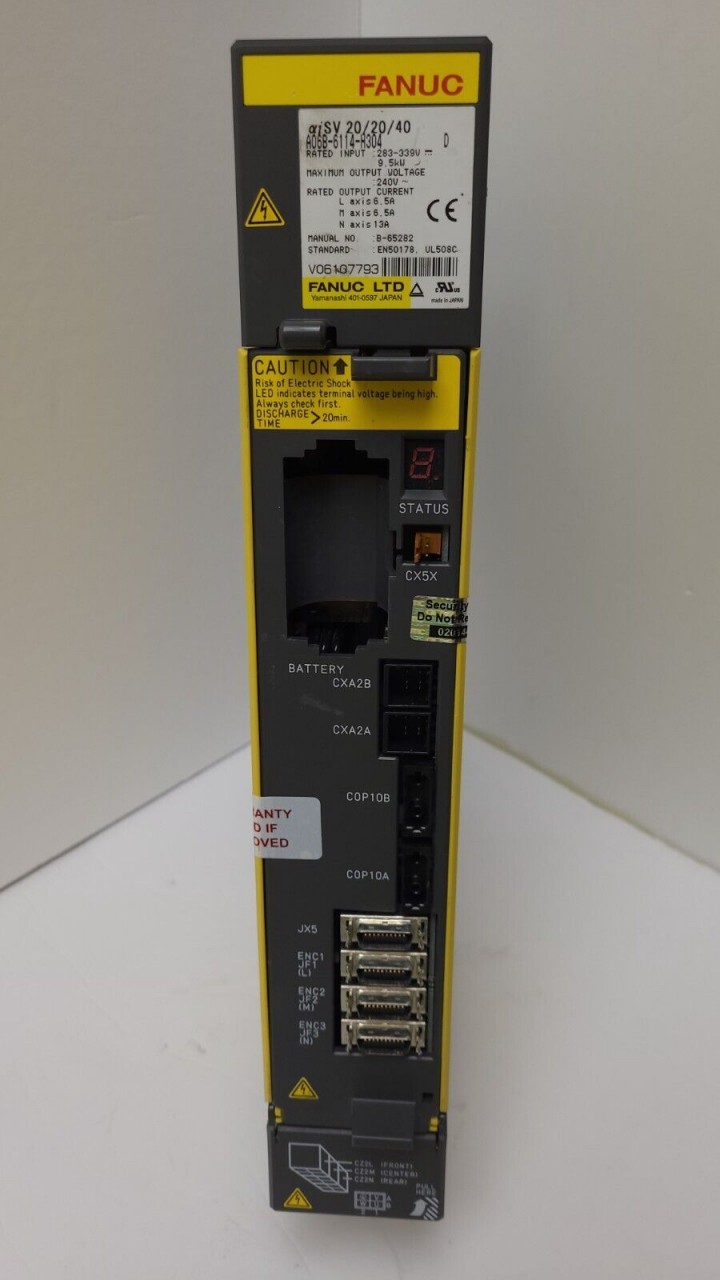

Original Fanuc A06B 6114 H304 Servo Amplifiers

Specifications :

The aiSV-20/20/40 is a 60mm wide servo module fitted with internal cooling fan and external heatsink.
Being the largest triple axis servo module of the ai series it can be fitted with many combinations of other ai amplifiers on a variety of machines including CNC’s, EDM’s and robotics.
This drive has a rated output of 6.5amp on the smaller channels and 13amp on the largest; containing two 20amp and a single 50amp transistor modules.
Fitted with wiring board A16B-2203-0680 and FSSB control card A16B-2101-004x.
