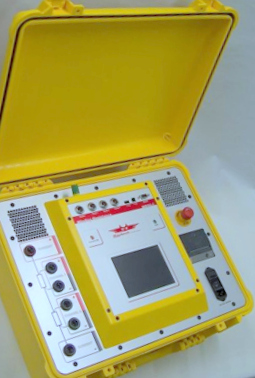

Raytech WR50-12 Series Resistance Meter

Features :

High injection power: 50A / 50V, with a special charging system that allows rapid measurement of transformer coils and/or electrical machines of up to 1500 H.
The current can be adjusted from 10 mA to 50A.
Resolution of 0.05 μΩ. Ranges up to 100kΩ. Temperature compensation of the reading, either with an external probe connected to the equipment, or by entering the value manually.
2 resistance measurement channels to obtain the reading in several windings at the same time. There is a special WR50-13 model, with 3 measurement channels.
Quick and safe discharge of the measured object.
DEMAGNETIZATION of the magnetic core.
Touch-panel type color display. Internal memory with USB interface (direct download of data to any Memory Stick). Built-in printer.
Mains supply 90 … 264 V ac, 47 … 63 Hz.
