Elite Pro Tools

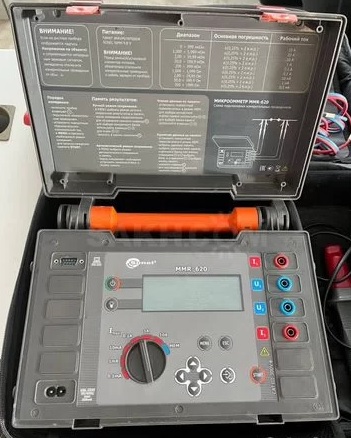

Sonel MMR 620 DLRO Micro Ohmmeter For Sale

Includes :

RS-232 Serial Cable
Mains Cable (Power Cord)
L1 Carrying Case
NIMH Battery
Hanging Straps
1kV Kelvin Clamp
Black Crocodile Clip
2X Double Wire Test Leads (U1/I1)(U2/I2) 3m
Double Pin Kelvin Probe
Sonel Reader

Specifications :

Meter’s power supply: battery package SONEL/Ni-MH 4,8 V
Battery charging time: approx. 2,5 hours
Number of measurements with the current of 10 A: 300
Auto-off time: 120 seconds
Immunity to interference: additional error ≤1% for voltage 50 Hz ≤100 mV RMS
Maximum leads resistance for the 10 A current: 0,1 Ω
Maximum inductance of the tested object: 40H
Accuracy of the test current: ±10%
Resistance measurement time:
With the selected resistive object type with the bidirectional current: 3 seconds
With the selected inductive object type, dependant on the resistance
and inductance of the object: a few minutes (max. 10)
Dimensions: 295 x 222 x 95 mm
Weight: approx. 1.7 kg
