Square D MasterPact NW16H2 1600A Air Circuit Breaker
Price:
$1,935.00
SKU:
EPT-068
Brand:
Weight:
1.00 LBS
Rating:
Availability:
Available & Ready to Ship
Shipping:
Calculated at checkout
Product Description

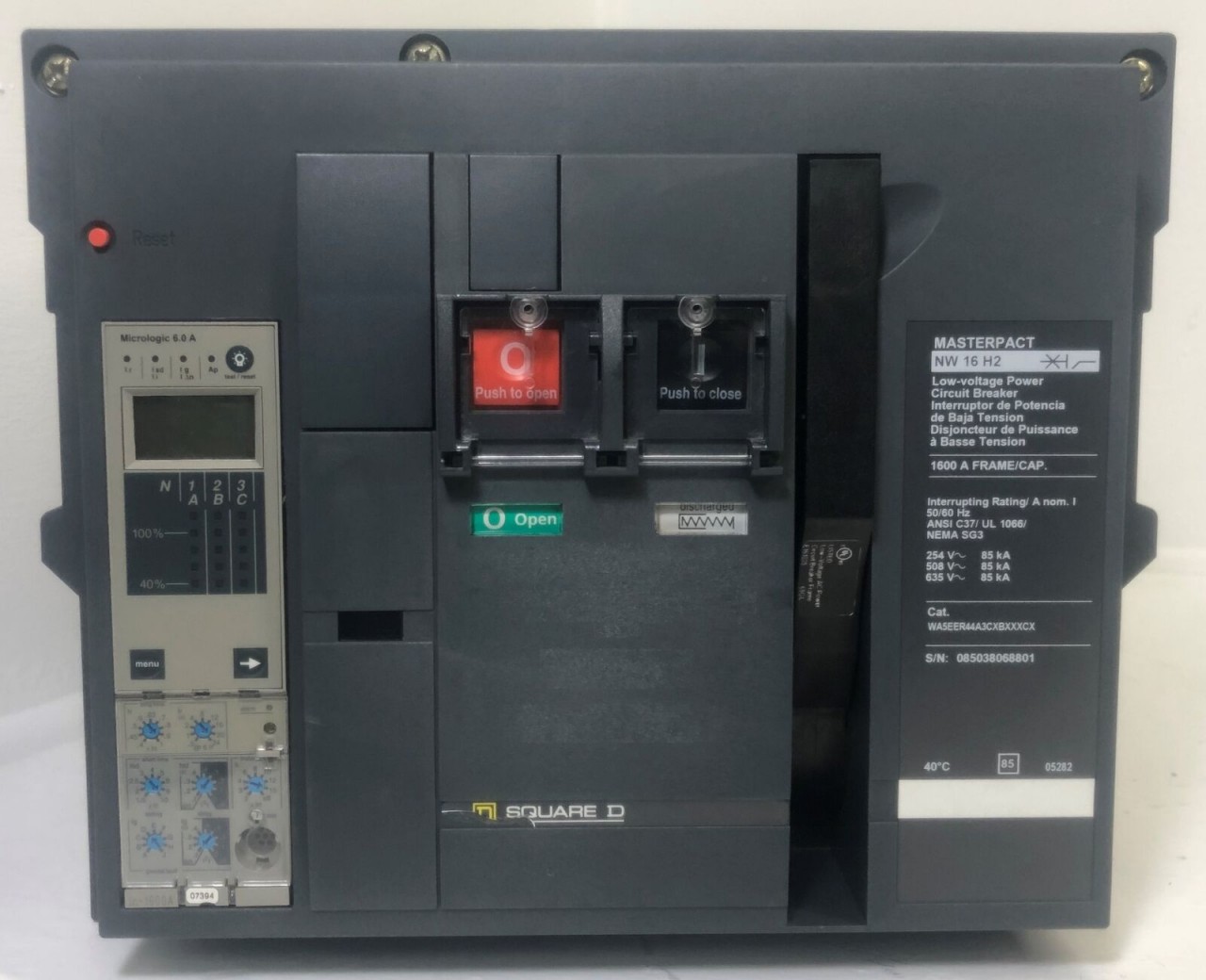

Square-D MasterPact NW16H2 1600A Air Circuit Breaker
Specifications :
Model No. NW16H2
Low-Voltage Power Circuit Breaker
1600 Amps Frame 1600 A Trip
Shunt Trip
LSIG Ground Fault
MasterPact
85,000 Amps @ 254 Volts AC
85,000 Amps @ 508 Volts AC
85,000 Amps @ 635 Volts AC
Micrologic 6.0 A Trip Unit:
1600 Amps
Cat. S144N
Long Time Setting & Delay
Short Time Setting & Delay
Instantaneous
Ground Fault Setting & Delay
Shunt Trip:
MX-XF / SHT-SHC
24 VAC
24/30 VDC
Breaker Weight: 108 lbs.
Breaker Dimensions (D x W x H): 14.5" x 15" x 12"
Warranty Information
30 Days Warranty
