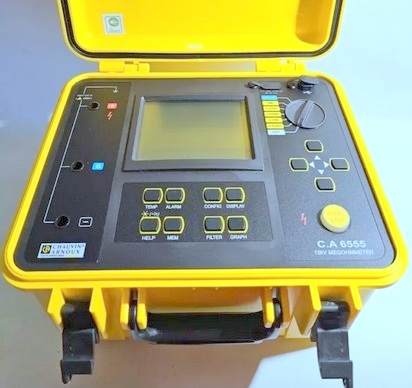

Chauvin Arnoux CA 6555 Megohmmeters

CA 6555 insulation tester is used to check equipment insulation during manufacturing, on-site installation work, periodic inspections and recommissioning of installations.Specially adapted for checking insulation on rotating machinery with a 12 kV power supply or higher, the C.A 6550 complies with the IEEE43
standard which recommends testing insulation at 5-10 kV.

Features

    Wide measurement range from 10 kΩ to 25 TΩ
    Fixed or programmable test voltage from 40V to 15 kV
    5mA max. charging current
    Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t) and i(u) graphs
