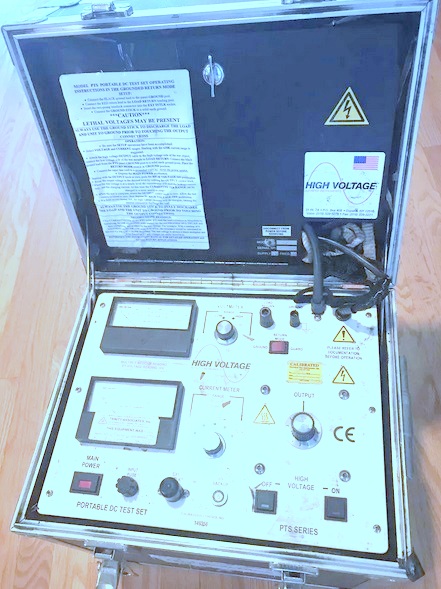

HVI PTS 75 Portable DC Test Set

Specifications :

Rugged, reliable and contains all functions needed for periodic electrical maintenance testing & retest of recently installed electrical apparatus
Insulation Resistance at any rated output voltage up to 7,500 GΩ
Dual-range voltmeter and five-range ammeter with 0-1µA low scale setting & 10nA resolution for leakage current measurements
Full-wave rectified bridge circuit, with DC ripple < 2.5% RMS
Regulated input for accurate, reliable results - ideal for field use...±1% stability with ±10% line change
Built-in HV discharge solenoid/ resistors...2.5, 5.0 & 7.5kJ for post-test internal shorting
Rugged industrial case with cushion grip handles
Output current limited to 10mA
Built-in test lead storage
Surge & transient protected
Continuous Duty Cycle
Rugged industrial case with cushion grip handles
Built-in "zero-start" and external safety interlocks
Insulated Return and Guard circuit to bypass stray or unwanted leakage current during testing
